MATE Floats! Vertical Profiler Kit

The MATE Floats! Vertical Profiler Kit is a simple kit (not an actual float) intended to introduce SCOUT and NAVIGATOR teams to the idea of designing and building a vertical profiling float and to help them to complete the MATE Floats! Task.

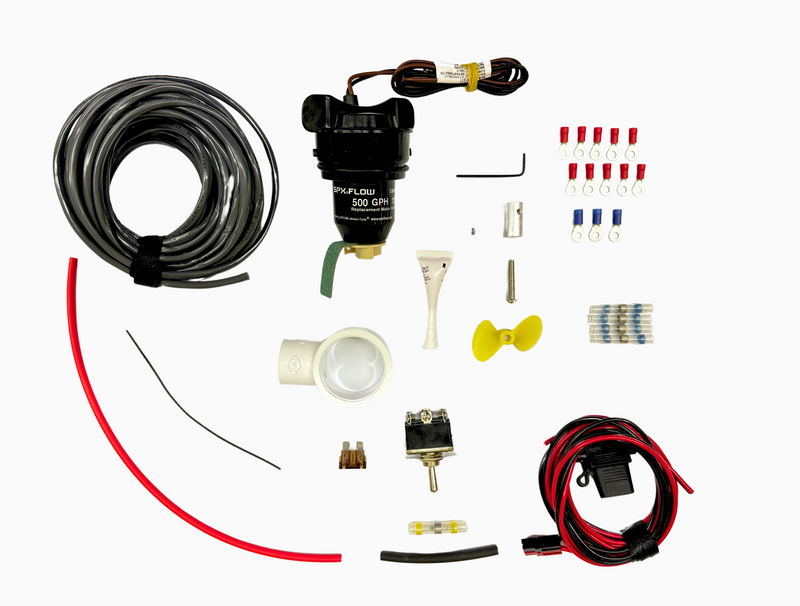

The MATE Floats! Vertical Profiler kit has a power cord kit, a switch for controlling the float, a tether, and a single motor to move the profiler up and down in the water column. Extra wires in the tether can be used to connect a temperature sensor from the profiler to the surface.

Basic instructions for assembling the Profiler kit can be found HERE.

• Thruster Motor - 1 pcs
• Propeller - 1 pcs
• Propeller Screw - 1 pcs
• Locknut for propeller screw - 1 pcs
• Propeller adapter - 1 pcs
• Set screw for propeller adapter - 1 pcs
• Hex wrench - 1 pcs
• Thread locker (271 red, 0.5ml capsule) - 1 pcs
• PVC Motor Mounts - 1 pcs
• 18/6 AF/PF tether wire (6-wire gray) - 25 feet
• Velcro Closures - 1 pcs
• 3/16" Red Heat Shrink tubing - 12 inches
• Solder&Seal Connector - Blue - 4 pcs
• 7mm Black Heat Shrink - 3 inches
• 7.5 Amp Blade Fuse (Grey) - 1 pcs
• 30 Amp Powerpole Assembly Kit - 1 pcs
• Terminal Ring Connectors - Red - 22-18 awg - 10 pcs
• Reclaimed Wire (18 gauge, various colors) - 6 inches
• DPDT Toggle Switch (large) (AF) - 1 pcs
• Terminal Ring Connectors - Blue - 16-14 awg - 3 pcs
