Barracuda ROV with Thrusters and Tether

Regular price
$ 1,200.00
Sale price
$ 1,200.00
Regular price
Out of Stock
Unit price
per

Free shipping within the United States on orders over $50

Detailed assembly instructions are available for the Barracuda kit, including video lessons, classroom activities, and many more topics here.  You will need to register to access our lesson plans, however, registration is free.

If you're not sure where to start, take a look at this handy side-by-side comparison of the SeaMATE ROV kits (link leads to MATE Educate)

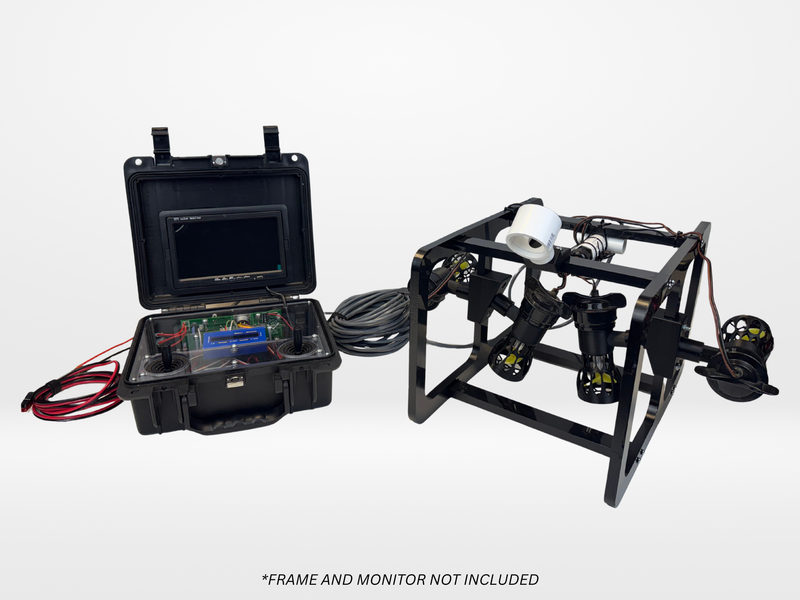

The new SeaMATE Barracuda ROV Kit is an ROV kit featuring analog or digital joystick control of four motors.  The Barracuda ROV kit consists of a control system, wires to receive and deliver power, and thrusters (motors, propeller adapters, and propellers). A frame is not included in the kit, but frame materials can easily be purchased from a local hardware store or from the SeaMATE store. The kit does not include batteries or a power supply, but the SeaMATE store does sell adapters for different battery types.

The control system is housed inside a compact, Seahorse brand protective equipment case.  Like the Triggerfish, the two joystick controls of the Barracuda make piloting easy and logical.  The Barracuda includes sensor input points, relays, and a Bluetooth module.  An Arduino is incorporated into the system which can be programmed to interpret sensors or control relays.  The joystick inputs can also interface with the Arduino to provide digital control of the Barracuda’s motors.  The Barracuda comes video ready with two video input channels and easy power out for monitors and cameras (sold separately).  Modular connections mean that Barracuda control boxes and vehicles are interchangeable.  These connections are the same as the Triggerfish connections, meaning Triggerfish and Barracuda control boxes and vehicles are interchangeable.

Detailed assembly instructions are available for the Barracuda kit, including video lessons, classroom activities, and many more topics here.  You will need to register to access our lesson plans, however, registration is free.

The Barracuda ROV with Thrusters and Tether includes:

Control Box

Box Plate 1 (large plate (~ 20cm x 25cm)
Box Plate 2 (medium plate, large holes (~ 6cm x 23cm)
Box Plate 3 (medium plate, small holes (~ 6cm x 23cm)
Box Plate 4 (small plate (~ 11cm x 2.5cm)
Joystick (2 ea)
Joystick 3 pin connector wire - 2 ea
Header Connector - 3 position - 4 ea
Amp/Volt/Watt meter for TriggerFish
TF/UD Power Rocker Switch
Power Cord 18 Ga. (red/black zip cord) (30cm)
Power Cord 16 Ga. (red/black zip cord) (45.5 cm)
Heatsink compound - 2 ea
Barracuda Control Board (Rev 1)
Sabertooth Motor Controller with water resistant coating and mounting screws
Arduino Uno R3
Barracuda Arduino Display w/jumpers
USB Panel Mount Jack to USB B Male
Barracuda Bluetooth Module
Reclaimed Wire (18 gauge, red) cut to 12.7cm lengths
Reclaimed Wire (18 gauge, black) cut to 12.7cm lengths
Reclaimed Wire (18 gauge, yellow) cut to 12.7cm lengths
Reclaimed Wire (18 gauge, blue) cut to 12.7cm lengths
Reclaimed Wire (18 gauge, orange) cut to 12.7cm lengths
Reclaimed Wire (18 gauge, white) cut to 12.7cm lengths
Reclaimed Wire (18 gauge, brown) cut to 12.7cm lengths
Reclaimed Wire (18 gauge, green) cut to 12.7cm lengths
SeaHorse box (300) (drilled - black - for Barracuda)
Control Box Hardware bag:  Steel Phillips Rounded Head Screws 8-32 Thread Size, 1-1/2" Long (2 ea), Steel Phillips Rounded Head Screws 8-32 Thread Size, 3/4" Long (6 ea), Steel Locknut with External-Tooth Lock Washer Zinc-Plated, 8-32 Thread Size, 11/32" Wide (8 ea), Phillips Rounded Head Screws for Sheet Metal Zinc-Plated Steel, Number 4 Size, 1/2" Long (4 ea)

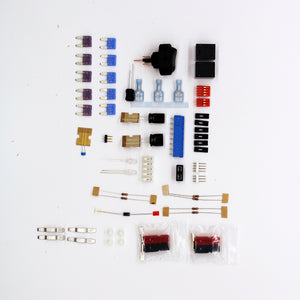

Barracuda Control Board Component Bag

Voltage Regulator - 9V - 1 ea
MOSFET N-CH 40V 45mA - 2 ea
Bi-color LEDs (GRN/RED) - 4 ea
DIODE SCHOTTKY 20V 1A - 2 ea
Capacitor - Ceramic 1uf 100v - 3 ea
Header Connector - 3 position - 4 ea
Header Connector - 4 position - 1 ea
Receptacle Connector - 3 position - 4 ea
Receptacle Connector - 4 position - 1 ea
Header Connector Terminal strip (50 pin) - 1 ea
Resistor 1k-ohm  - 7 ea
Resistors 2k-Ohm (small body) - 2 ea
Resistors 10k-Ohm (Barracuda) - 2 ea
Mini Blade Fuse Holder - PCB – 1 ea
3 Amp Mini Blade Fuse (Violet) – 1 ea
Shorting jumper (0.1" pitch) – 4 ea
RELAY GEN PURPOSE SPDT 10A 12V – 2 ea
Control Board Component Bag:  Capacitor - Aluminum 220 uf 25v (1ea), Capacitor - Ceramic 1uf 100v (2 ea), Capacitor - Aluminum 1000 uf 16v (2 ea), Diode 150V 2A (1 ea), Mini Blade Fuse Holder – PCB (1 ea), 3 Amp Mini Blade Fuse (Violet) (1 ea),  7mm Black Heat Shrink (15 cm), Radial Inductor  (1 ea), Bi-color LEDs (GRN/RED) (6 ea), Receptacle Connector - 5 position (3 ea), Resistor 1k-ohm (5 ea), 30 Amp Powerpole Connector Housings (One RED/BLACK bonded pair with two 30amp crimp lugs in a 1x2 bag) (requires Powerwerx TRIcrimp Powerpole Connector for installation) (4 ea), 45 Amp PCB Contact - Horizontal (Bottom) right angle mount (4 ea)


Control Board Hardware Bag

Steel Phillips Rounded Head Screws 8-32 Thread Size, 1/4" Long (4 ea)
Steel Phillips Rounded Head Screws 8-32 Thread Size, 1/2" Long (4 ea)
Aluminum Hex Standoff - 5/8" x 5/16" x 8-32 (4 ea)



Barracuda Backplane Board kit

MATE Backplane Board  – 1 ea
Powerpole Connector Housings (RED/BLACK bonded pair housings only - without crimp lugs) – 1
Header Connector - 5 position – 3
1/4" Quick Connect Female, 14-16 AWG fully insulated – 5
Power Cord 16 Ga. (red/black zip cord) – 12
Tether Connector - 12 pin -  male/female set – 1
Reclaimed Wire (18 gauge, red) cut to 12.7cm lengths – 2
Reclaimed Wire (18 gauge, black) cut to 12.7cm lengths – 2
Reclaimed Wire (18 gauge, yellow) cut to 12.7cm lengths – 1
Reclaimed Wire (18 gauge, blue) cut to 12.7cm lengths – 1
Reclaimed Wire (18 gauge, orange) cut to 12.7cm lengths – 1
Reclaimed Wire (18 gauge, white) cut to 12.7cm lengths – 1
Reclaimed Wire (18 gauge, brown) cut to 12.7cm lengths – 1
Reclaimed Wire (18 gauge, green) cut to 12.7cm lengths – 1
Tether Connector (12 pin) hardware bag – 1
Backplane Component Bag: Bi-color LEDs (GRN/RED) (2 ea), Resistor 1k-ohm (2 ea), Steel Phillips Rounded Head Screws 8-32 Thread Size, 3/4" Long (4 ea), Steel Locknut with External-Tooth Lock Washer Zinc-Plated, 8-32 Thread Size, 11/32" Wide (4 ea), Nylon spacers for TF-BA Backplane (4 ea), BNC Connector Jack, Female Socket - Panel Mount (2 ea), Video power jack (1 ea), Terminal  Block - 4 Position (Black) 3.5mm (1 ea), RCA Jack Mono Connector – PCB (2 ea), Mini Blade Fuse Holder – PCB (1 ea), 15 Amp Mini Blade Fuse (1 ea), 45 Amp PCB Contact - Vertical mount, short tail contact (2 ea)


Four Thruster Kit

Thruster Motor – 4 ea
Thruster Mount – 4 ea
Propeller – 4 ea
Propeller Screw – 4 ea
Locknut for propeller screw, 10-32 Thread Size – 4 ea
Propeller Adapter WITH Set Screw (bags of 4) – 1 ea
Thead locker (222MS purple, 0.5ml capsule) – 1 ea
Hex wrench – 1 ea



Power Kit with Powerpole Connectors

15 Amp Fuse (Blue) – 1 ea
30 Amp Powerpole Connector Housings (One RED/BLACK bonded pair with two 30amp crimp lugs in a 1x2 bag) (requires Powerpole crimper for installation) – 1 ea
Velcro Closures – 1 ea
7mm Black Heat Shrink – 7.6cm
Power Cord 14 Ga. (blk/red zip cord) – 2.4m
30 Amp Powerpole Connectors (crimp lug only) – 2 ea
Powerpole Connector Housings (RED/BLACK bonded pair housings only - without crimp lugs) – 1 bonded pair
14 Ga. Blade Fuse Holder – 1 ea



Barracuda Tether Kit

Tech Flex Expanded Sleeving – 15m
18/8 TF tether wire (8-wire gray) – 15m
Velcro Closures – 2 ea
Solder&Seal Connector – Blue – 8 ea
Heat Shrink Tubing Assortment
1/2" PVC Female slip x NPT adapter for tether strain relief – 2 ea
1/2" PVC Cross – 1 ea
1/2 " PVC pipe (3.5 cm length) – 2 ea
Zip Ties (small 4") – 4 ea
DOME Strain Relief Connector 1/2" – 2 ea
