Name: TriggerFish Control Box Kit (Rev 4) - (Unassembled)
Brand: SeaMATE
SKU: 3-TRG-3053-AD-01
Price: 675.00 USD
Availability: InStock

TriggerFish Control Box Kit (Rev 4) - (Unassembled)

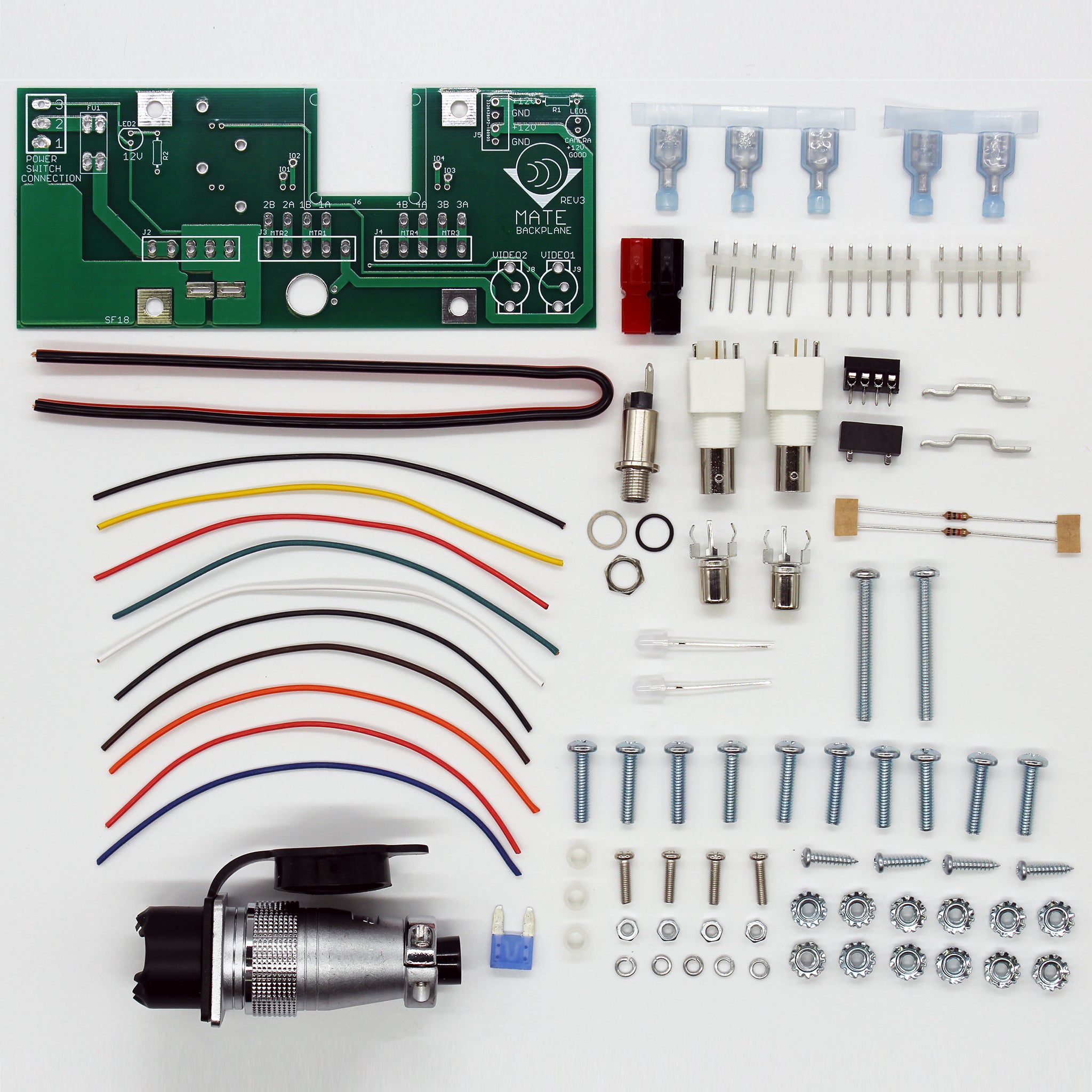

Layout of everything included in the TF/BC Backplane Board Kit

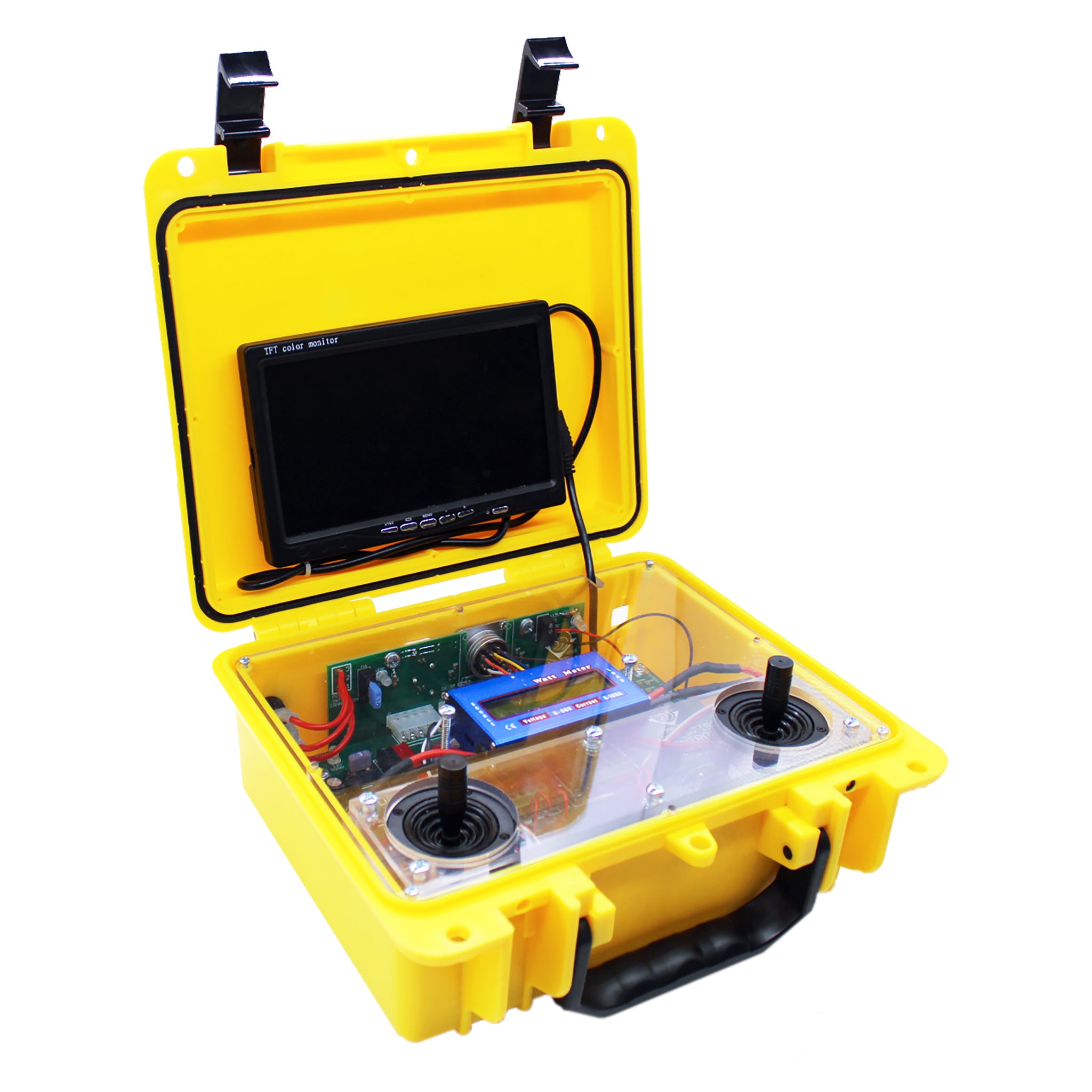

Assembled TriggerFish control box with visible wiring and components

TriggerFish Control Box Kit (Rev 4) - (Unassembled)

3-TRG-3053-AD-01

$ 675.00

Shipping calculated at checkout.

The TriggerFish Control Box Kit includes the control system only, allowing you to build or repair a TriggerFish ROV.

Product variants

Pickup available at SeaMATE

Usually ready in 2-4 days

Pairs well with

In stock! Ships within 3-5 business days.

30-day return policy

Free shipping on orders over $100

TriggerFish Control Box Kit (Rev 4) - (Unassembled)

$ 675.00

Product Details

The TriggerFish Control Box Kit provides the control system for the TriggerFish ROV. This kit does not include thrusters, tether, or frame materials, giving flexibility for custom builds or replacements.

The control system is housed in a compact protective case. Two joysticks allow intuitive control of four motors: one joystick for forward, reverse, and turning, and the other for vertical and sideways movement. The system provides variable speed control, from slow to full power.

The TriggerFish Control Box is video-ready, with two video input channels and power outputs for monitors and cameras (sold separately). A volt and ammeter, along with LED indicators, display system status, and modular connections allow control boxes and vehicles to be interchangeable.

What's Included

Control Box

Triggerfish Box (Rev 4) (machined yellow box - large hole, no rib) – 1 ea
Triggerfish Box Plate 1 – 1 ea
Triggerfish Box Plate 3 – 1 ea
Triggerfish Box Plate 4 – 1 ea
Triggerfish Box Sticker – 1 ea
Terminal Block - 8 Position (Blue) 5.08mm – 1 ea
Joystick – 2 ea
Joystick 3 pin connector wire – 2 ea
Joystick 3-pin Header Connector – 4 ea
Amp/Volt/Watt Meter for Triggerfish – 1 ea
TF/UD Power Rocker Switch – 1 ea
Power Cord 18 Ga. (red/black zip cord) – 30 cm
Power Cord 16 Ga. (red/black zip cord) – 45 cm
Heatsink compound – 2, 1g pkg
Triggerfish Main Control Board (Rev 4) – 1 ea
Sabertooth Motor Controller with water resistant coating – 2 ea
Reclaimed Wire (18 gauge, red) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, black) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, yellow) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, blue) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, orange) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, white) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, brown) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, green) cut to 5in lengths - 1 ea

Control Board Hardware Bag

Steel Phillips Rounded Head Screws 8-32 Thread Size, 1/4" Long - 4 ea
Steel Phillips Rounded Head Screws 8-32 Thread Size, 1/2" Long - 4 ea
Aluminum Hex Standoff - 5/8" x 5/16" x 8-32 - 4 ea

Control Box Hardware Bag

Steel Phillips Rounded Head Screws 8-32 Thread Size, 1-1/2" Long - 2 ea
Steel Phillips Rounded Head Screws 8-32 Thread Size, 3/4" Long - 6 ea
Steel Locknut with External-Tooth Lock Washer Zinc-Plated, 8-32 Thread Size, 11/32" Wide - 8 ea
Phillips Rounded Head Screws for Sheet Metal Zinc-Plated Steel, Number 4 Size, 1/2" Long - 4 ea

TriggerFish/Barracuda Backplane Board Kit

MATE Backplane Board - 1 ea
Powerpole Connector Housings (RED/BLACK bonded pair housings only - without crimp lugs) - 1 ea
Header Connector - 5 position - 3 ea
1/4" Quick Connect Female, 14-16 AWG fully insulated - 5 ea
Power Cord 16 Ga. (red/black zip cord) (12 cm) - 1 ea
Tether Connector - 12 pin - male/female set - 1 ea
Reclaimed Wire (18 gauge, red) cut to 5in lengths - 2 ea
Reclaimed Wire (18 gauge, black) cut to 5in lengths - 2 ea
Reclaimed Wire (18 gauge, yellow) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, blue) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, orange) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, white) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, brown) cut to 5in lengths - 1 ea
Reclaimed Wire (18 gauge, green) cut to 5in lengths - 1 ea
Tether Connector (12 pin) Hardware Bag
Bi-color LEDs (GRN/RED) - 2 ea
Resistor 1k-ohm - 2 ea
Steel Phillips Rounded Head Screws 8-32 Thread Size, 3/4" Long - 4 ea
Steel Locknut with External-Tooth Lock Washer Zinc-Plated, 8-32 Thread Size, 11/32" Wide - 4 ea
Nylon spacers for TF-BA Backplane - 4 ea
BNC Connector Jack, Female Socket - Panel Mount - 2 ea
Video power jack - 1 ea
Terminal Block - 4 Position (Black) 3.5mm - 1 ea
RCA Jack Mono Connector – PCB - 2 ea
Mini Blade Fuse Holder – PCB - 1 ea
15 Amp Mini Blade Fuse - 1 ea
45 Amp PCB Contact - Vertical mount, short tail contact - 2 ea

SeaMATE TriggerFish Control Board Component Bag – 1 ea

Capacitor - Aluminum 220 uf 25v – 1 ea
Capacitor - Ceramic 1uf 100v – 2 ea
Capacitor - Aluminum 1000 uf 16v – 2 ea
Diode 150V 2A – 1 ea
Mini Blade Fuse Holder - PCB – 1 ea
3 Amp Mini Blade Fuse (Violet) – 1 ea
Radial Inductor 100uh 1.4A 280 MΩ – 1 ea
Bi-color LEDs (GREEN/RED) – 6 ea
Receptacle Connector - 5 position – 3 ea
Resistors 1k-Ohm – 5 ea
30 Amp Powerpole Connector Housings (One RED/BLACK bonded pair with two 30amp crimp lugs in a 1x2 bag) – 4 set
45 Amp PCB Contact - Horizontal (Bottom), right angle mount – 4 ea
7mm Black Heat Shrink - 6in
