The PufferFish ROV Control Box Kit provides the control system for the PufferFish ROV.
The control system is housed in a durable box with an O-ring seal and a clear top designed for easy handling. LED indicators show motor direction and power, while an amp/volt meter helps monitor system status. Robust rocker switches are easily replaceable and not soldered to the board. The circuit board includes a power filter to safely connect add-on electronics such as cameras. Soldering is required to assemble the components on the circuit board.

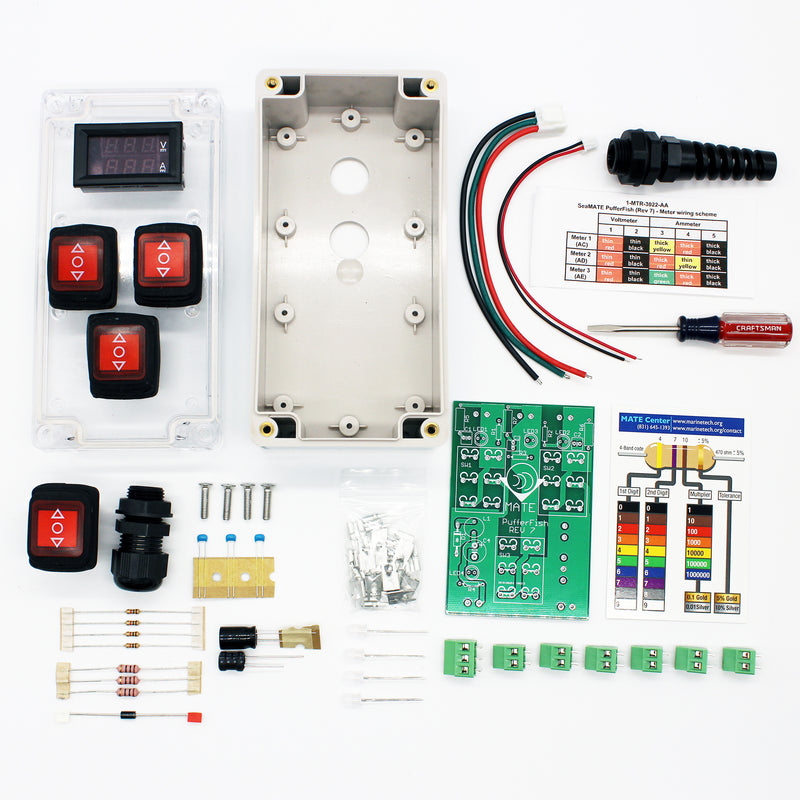

What's Included
Pufferfish Control Box Kit (Rev 7)
Pufferfish Control Box Enclosure (w/ 4 Screws) – 1 ea
Pufferfish Control Box Wrap Sticker – 1 ea
Amp/Voltmeter for Pufferfish – 1 ea
DPDT Rocker Switch (splash-resistant) – 4 ea
Flex Strain Relief Connector 3/8"" (with Nut) – 1 ea
Dome Strain Relief Connector 3/8"" – 1 ea
Strain Relief Connector Lock Nut 3/8"" – 1 ea
1/8" Flathead Screwdriver – 1 ea
Pufferfish Circuit Board Kit
Pufferfish Printed Circuit Board (Rev 7) – 1 ea
Amp/Voltmeter instructions for Pufferfish – 1 ea
Terminal Block - 2 Position 5mm – 6 ea
Terminal Block - 3 Position 5mm – 1 ea
Switch Connectors – 20 ea
Bi-color LEDs (GREEN/RED) – 4 ea
Resistor 10 ohm – 3 ea
Resistor 1k-ohm – 4 ea
Capacitor - Ceramic 1uf 100v – 3 ea
Capacitor - Aluminum 220 uf 25v – 1 ea
Radial Inductor – 1 ea
Diode 150V 2A – 1 ea
Additional Items Needed
This kit does not include any power, tether, and motor + propeller kits. If you are looking for the PufferFish ROV kit with thrusters and tether is available here..
Materials for a frame is not included in this kit. If you would like to purchase a frame, we do sell a PVC Frame Kit for the AngelFish and PufferFish Kit. You can check it out here!
