TriggerFish/Barracuda Backplane Board Kit (Rev 3)
TriggerFish/Barracuda Backplane Board Kit (Rev 3) - view 1

TriggerFish/Barracuda Backplane Board Kit (Rev 3)

Includes all components needed to replace or rebuild the TriggerFish or Barracuda backplane board.

Free shipping on orders over $100. View shipping policy
Secure Checkout
30-Day Returns
Ships in 2-5 Business Days

Product Overview

The TriggerFish/Barracuda Backplane Board Replacement Kit provides all parts required to replace the backplane board. This kit is included in the full TriggerFish or Barracuda ROV kit but can be purchased separately if the backplane board needs replacement or if you want to refresh the ROV for a new group by having students assemble the board again.

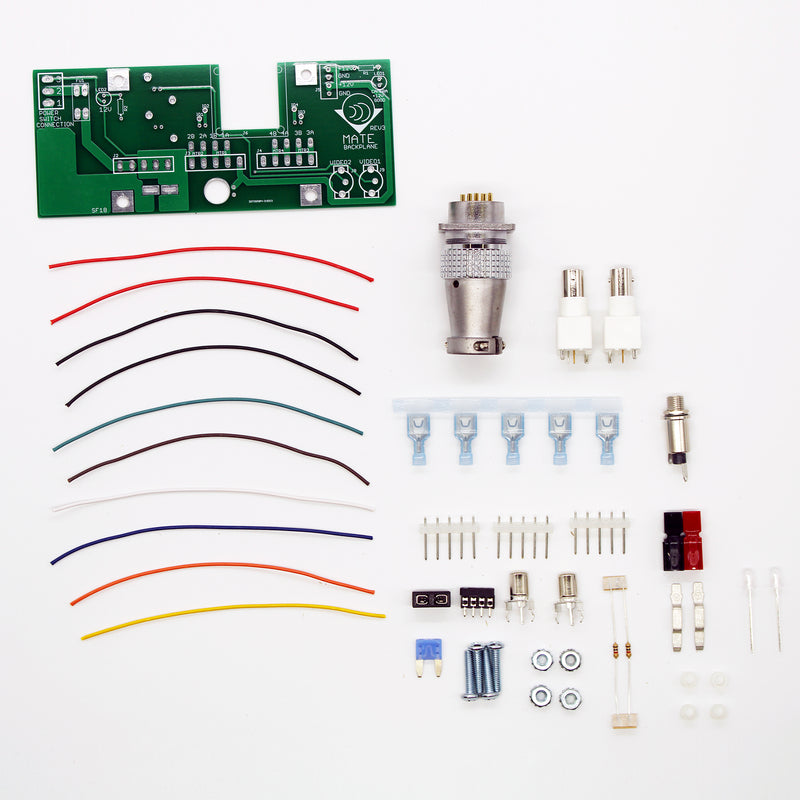

What's Included

  • MATE Backplane Board - 1 ea
  • Powerpole Connector Housings (RED/BLACK bonded pair housings only - without crimp lugs) - 1 ea
  • Header Connector - 5 position - 3 ea
  • 1/4" Quick Connect Female, 14-16 AWG fully insulated - 5 ea
  • Power Cord 16 Ga. (red/black zip cord) (12 cm) - 1 ea
  • Tether Connector - 12 pin - male/female set - 1 ea
  • Reclaimed Wire (18 gauge, red) cut to 5in lengths - 2 ea
  • Reclaimed Wire (18 gauge, black) cut to 5in lengths - 2 ea
  • Reclaimed Wire (18 gauge, yellow) cut to 5in lengths - 1 ea
  • Reclaimed Wire (18 gauge, blue) cut to 5in lengths - 1 ea
  • Reclaimed Wire (18 gauge, orange) cut to 5in lengths - 1 ea
  • Reclaimed Wire (18 gauge, white) cut to 5in lengths - 1 ea
  • Reclaimed Wire (18 gauge, brown) cut to 5in lengths - 1 ea
  • Reclaimed Wire (18 gauge, green) cut to 5in lengths - 1 ea
  • Tether Connector (12 pin) Hardware Bag
  • Bi-color LEDs (GRN/RED) - 2 ea
  • Resistor 1k-ohm - 2 ea
  • Steel Phillips Rounded Head Screws 8-32 Thread Size, 3/4" Long - 4 ea
  • Steel Locknut with External-Tooth Lock Washer Zinc-Plated, 8-32 Thread Size, 11/32" Wide - 4 ea
  • Nylon spacers for TF-BA Backplane - 4 ea
  • BNC Connector Jack, Female Socket - Panel Mount - 2 ea
  • Video power jack - 1 ea
  • Terminal Block - 4 Position (Black) 3.5mm - 1 ea
  • RCA Jack Mono Connector – PCB - 2 ea
  • Mini Blade Fuse Holder – PCB - 1 ea
  • 15 Amp Mini Blade Fuse - 1 ea
  • 45 Amp PCB Contact - Vertical mount, short tail contact - 2 ea
