Barracuda Control Board Replacement Kit

Barracuda Control Board Replacement Kit

Regular price
$ 175.00
Sale price
$ 175.00
Regular price
Out of Stock
Unit price
per

***Backorder Notification
The following kits are currently on backorder for six weeks:

-Barracuda Control Box (ONLY) Kit (Rev 2)
-Barracuda ROV with Thrusters and Tether (Rev 2)
-TriggerFish Control Box Kit (Rev 4)
-TriggerFish ROV Kit with Thrusters and Tether (Rev 4)
-Sabertooth – Joystick Replacement Kit

Free shipping within the contiguous United States on orders over $50*

This is a replacement Barracuda control board and includes all the components that go on the Barracuda control board. This kit comes included in the full Barracuda ROV kit. The replacement kit is only needed if an issue occurs and the Barracuda control board needs to be replaced, or if you want to remove the Barracuda control board so a new group of students can solder and assemble the board.

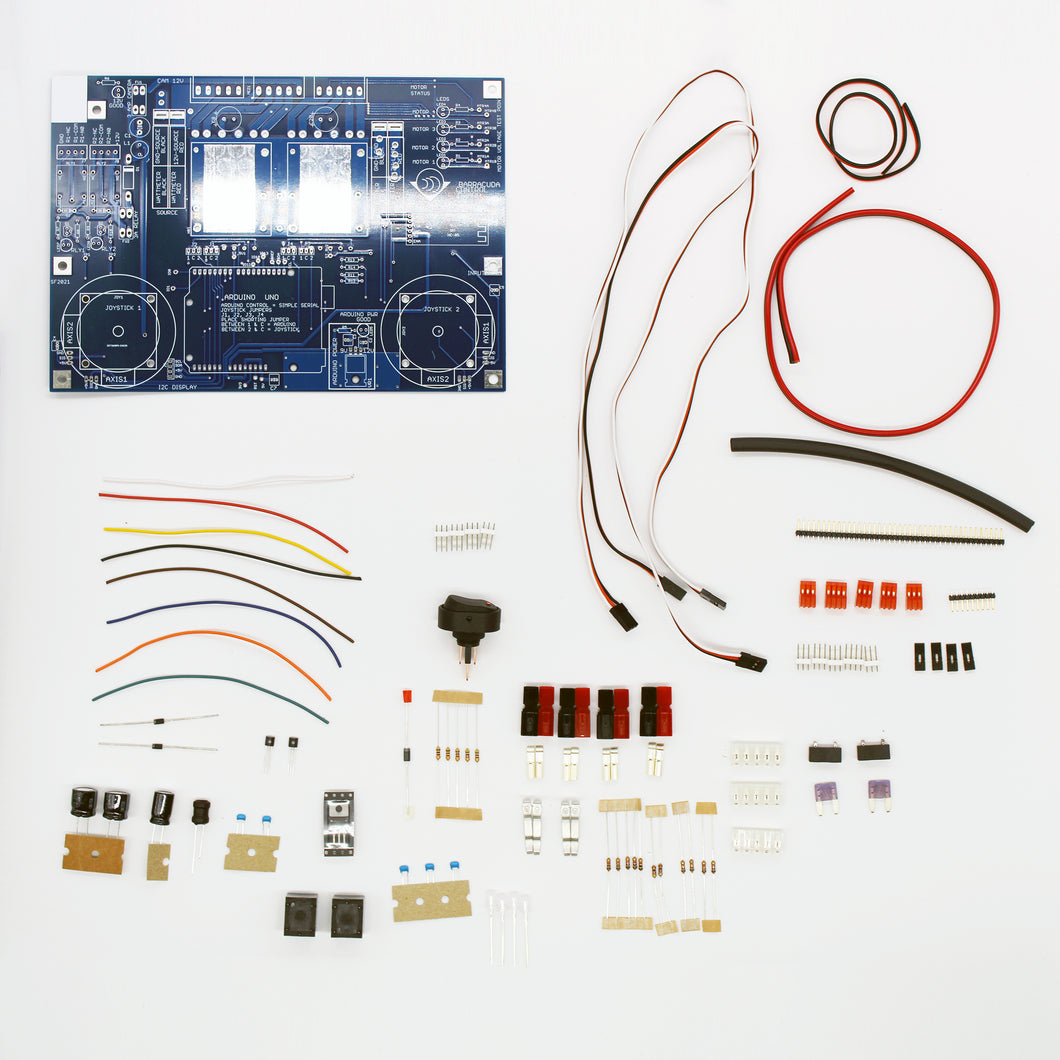

The Barracuda Control Board Replacement Kit includes:

Header Connector - 3 position 4 pcs
Power Cord 18 Ga. (red/black zip cord) 12 inches
Power Cord 16 Ga. (red/black zip cord) 18 inches
Barracuda Control Board (Rev 1) 1 pcs
Barracuda Bluetooth Module 1 pcs
Reclaimed Wire (18 gauge, red) cut to 5" lengths 1 pcs
Reclaimed Wire (18 gauge, black) cut to 5" lengths 1 pcs
Reclaimed Wire (18 gauge, yellow) cut to 5" lengths 1 pcs
Reclaimed Wire (18 gauge, blue) cut to 5" lengths 1 pcs
Reclaimed Wire (18 gauge, orange) cut to 5" lengths 1 pcs
Reclaimed Wire (18 gauge, white) cut to 5" lengths 1 pcs
Reclaimed Wire (18 gauge, brown) cut to 5" lengths 1 pcs
Reclaimed Wire (18 gauge, green) cut to 5" lengths 1 pcs
Voltage Regulator - 9V 1 pcs
MOSFET N-CH 40V 45mA 2 pcs
Bi-color LEDs (GRN/RED) 4 pcs
DIODE SCHOTTKY 20V 1A 2 pcs
Capacitor - Ceramic 1uf 100v 3 pcs
Header Connector - 3 position 4 pcs
Header Connector - 4 position 1 pcs
Receptacle Connector - 3 position 4 pcs
Receptacle Connector - 4 position 1 pcs
Header Connector Terminal strip (50 pin) 1 pcs
Resistor 1k-ohm 7 pcs
Resistors 2k-Ohm (small body) 2 pcs
Resistors 10k-Ohm (Barracuda) 2 pcs
Mini Blade Fuse Holder - PCB 1 pcs
3 Amp Mini Blade Fuse (Violet) 1 pcs
Shorting jumper (0.1" pitch) 4 pcs
RELAY GEN PURPOSE SPDT 10A 12V 2 pcs
Capacitor - Aluminum 220 uf 25v 1 pcs
Capacitor - Ceramic 1uf 100v 2 pcs
Capacitor - Aluminum 1000 uf 16v 2 pcs
Diode 150V 2A 1 pcs
Mini Blade Fuse Holder - PCB 1 pcs
3 Amp Mini Blade Fuse (Violet) 1 pcs
7mm Black Heat Shrink [inches] 6 inches
Radial Inductor 1 pcs
Bi-color LEDs (GRN/RED) 6 pcs
Receptacle Connector - 5 position 3 pcs
Resistor 1k-ohm 5 pcs
30 Amp Powerpole Connector Housings (One RED/BLACK bonded pair with two 30amp crimp lugs in a 1x2 bag) (requires 3-PWR-7008-AA-01 Powerpole crimper for installation) 4 pcs
45 Amp PCB Contact - Horizontal (Bottom), right angle mount 4 pcs
