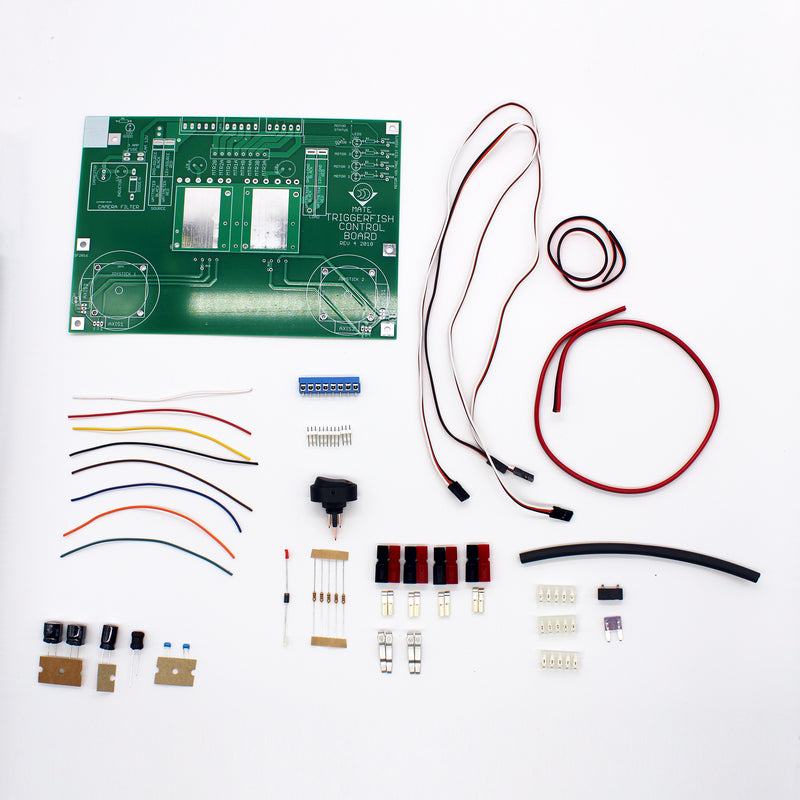

The TriggerFish Control Board Replacement Kit provides all parts required to replace the TriggerFish control board. This kit is included in the full TriggerFish ROV kit but can be purchased separately if the board needs replacement or if you want to reuse the ROV with a new group by having students assemble the board again.
What's Included
TriggerFish Main Control Board (Rev 4) – 1 ea
Terminal Block - 8 Position (Blue) 5.08mm – 1 ea
Header Connector - 3 position – 4 ea
Power Cord 18 Ga. (red/black zip cord) – 12 inches
Power Cord 16 Ga. (red/black zip cord) – 18 inches
Reclaimed Wire (18 gauge, red) cut to 5" lengths – 1 ea
Reclaimed Wire (18 gauge, black) cut to 5" lengths – 1 ea
Reclaimed Wire (18 gauge, yellow) cut to 5" lengths – 1 ea
Reclaimed Wire (18 gauge, blue) cut to 5" lengths – 1 ea
Reclaimed Wire (18 gauge, orange) cut to 5" lengths – 1 ea
Reclaimed Wire (18 gauge, white) cut to 5" lengths – 1 ea
Reclaimed Wire (18 gauge, brown) cut to 5" lengths – 1 ea
Reclaimed Wire (18 gauge, green) cut to 5" lengths – 1 ea
SeaMATE TriggerFish Control Board Component Bag – 1 ea
Capacitor - Aluminum 220 uf 25v – 1 ea
Capacitor - Ceramic 1uf 100v – 2 ea
Capacitor - Aluminum 1000 uf 16v – 2 ea
Diode 150V 2A – 1 ea
Mini Blade Fuse Holder - PCB – 1 ea
3 Amp Mini Blade Fuse (Violet) – 1 ea
Radial Inductor 100uh 1.4A 280 MΩ – 1 ea
Bi-color LEDs (GREEN/RED) – 6 ea
Receptacle Connector - 5 position – 3 ea
Resistors 1k-Ohm – 5 ea
30 Amp Powerpole Connector Housings (One RED/BLACK bonded pair with two 30amp crimp lugs in a 1x2 bag) – 4 set
45 Amp PCB Contact - Horizontal (Bottom), right angle mount – 4 ea
7mm Black Heat Shrink - 6in
