AngelFish ROV Kit with Thrusters and Tether (Rev 3)

Unassembled

$ 255.00

Product Details

The AngelFish is a basic ROV kit that is designed to introduce students to ROV building. The AngelFish ROV kit consists of a control system, wires to receive and deliver power, and thrusters (motors, propeller adapters, and propellers). A frame is not included in the kit, but frame materials can be purchased from your local hardware store.

The assembled AngelFish kit is used for the ROV-in-a-Bag activity. ROV-in-a-Bag is recommended as an activity to introduce and get students excited about designing and building their own ROVs. ROV-in-a-Bag allows students to quickly build then operate – “fly” – an ROV in a swimming pool or test tank.

Assembled kits (A.K.A. ROV-in-a-Bag) require additional handling time of 2 weeks for assembly and 5-7 days for shipping from time of order.

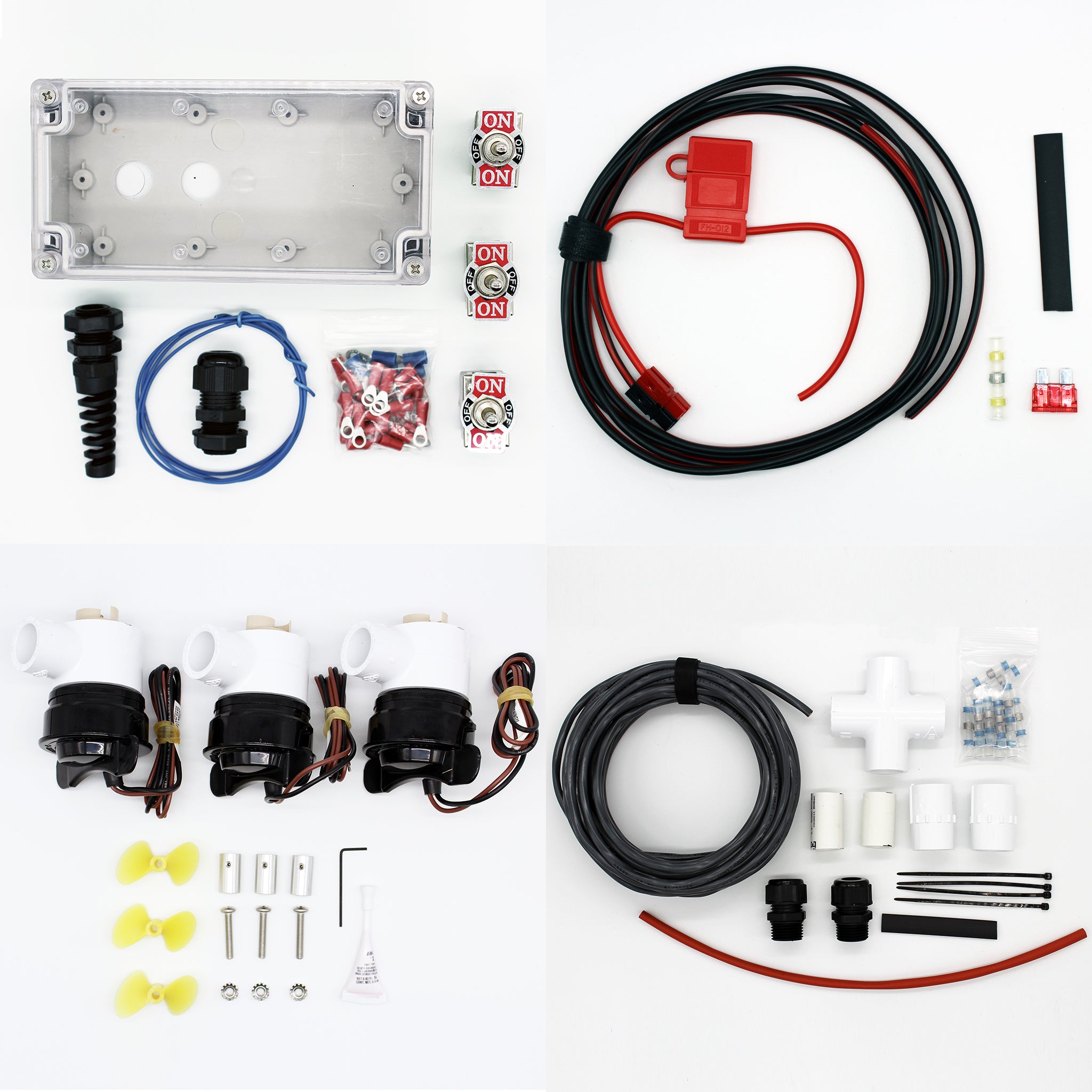

What's Included

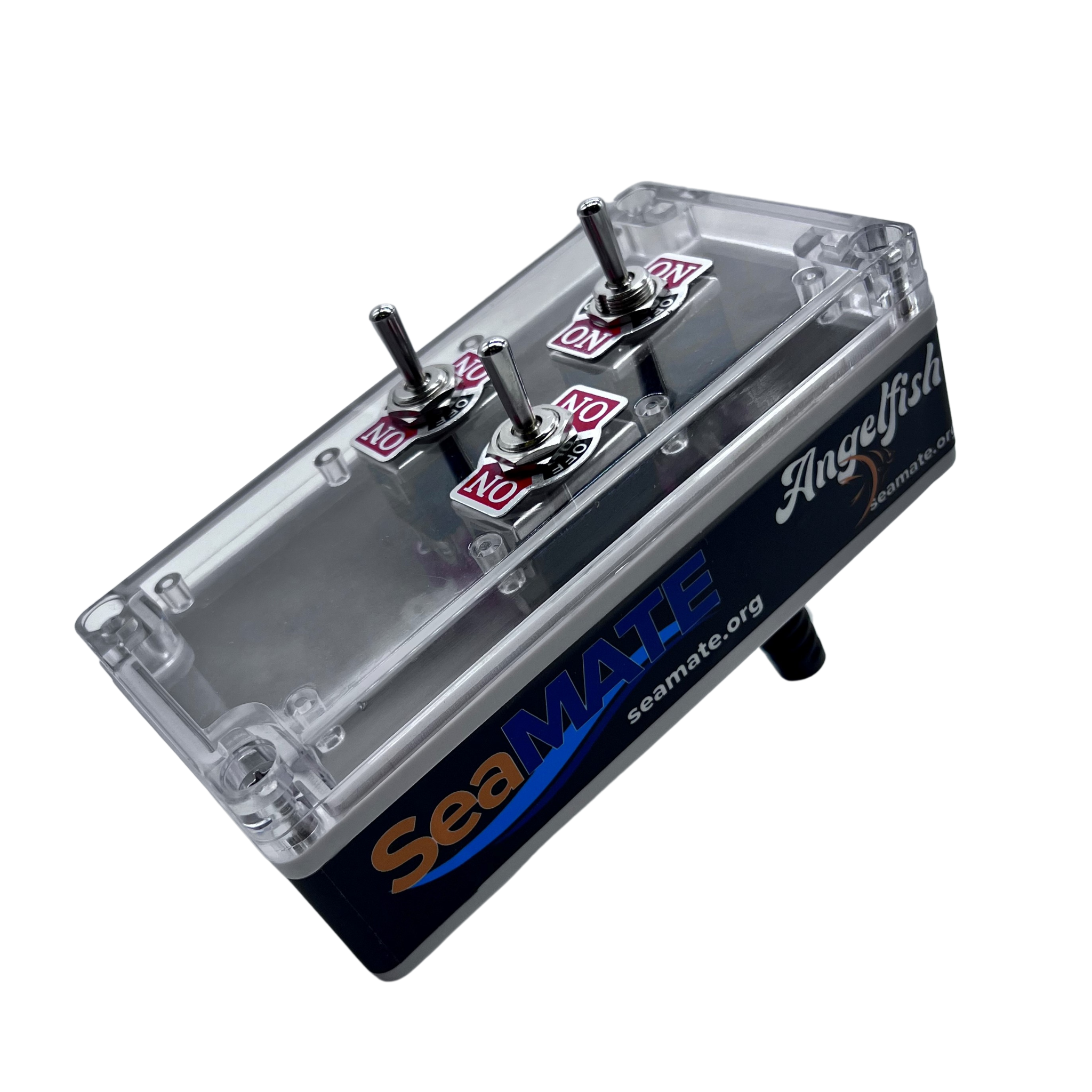

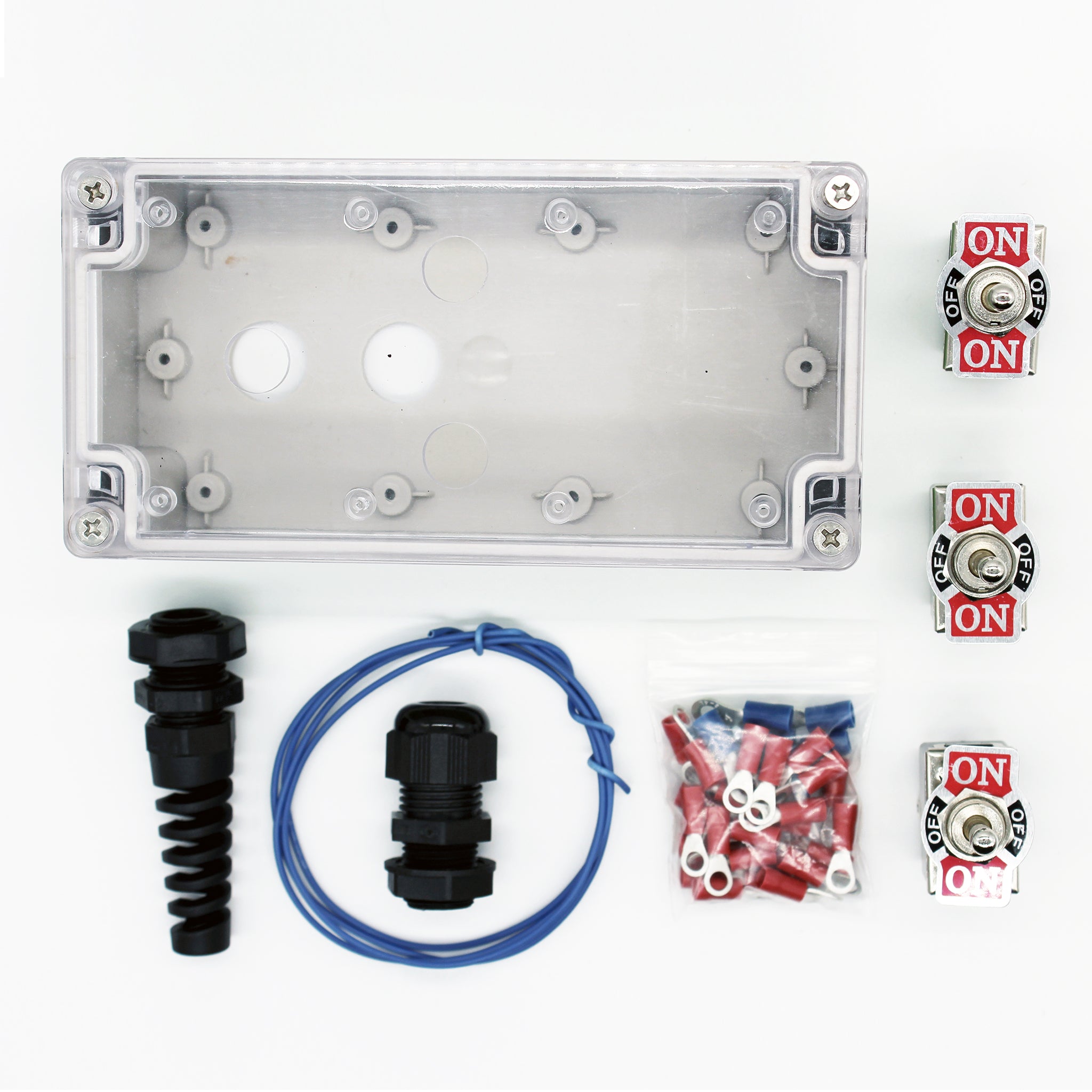

AngelFish Control Box Kit

AngelFish Control Box Enclosure (w/ 4 Screws) – 1 ea
AngelFish Control Box Wrap Sticker – 1 ea
DPDT Toggle Switch (large) (AF) – 3 ea
Extra screws for Angelfish switch – 2 ea
FLEX Strain Relief Connector 3/8" (with Nut) – 1 ea
DOME Strain Relief Connector 3/8" – 1 ea
Strain Relief Connector Lock Nut 3/8" – 1 ea
Terminal Ring Connectors (Red, 22-16AWG) – 28 ea
Terminal Ring Connectors (Blue, 16-14AWG) – 6 ea
18 Gauge Wire – 1m

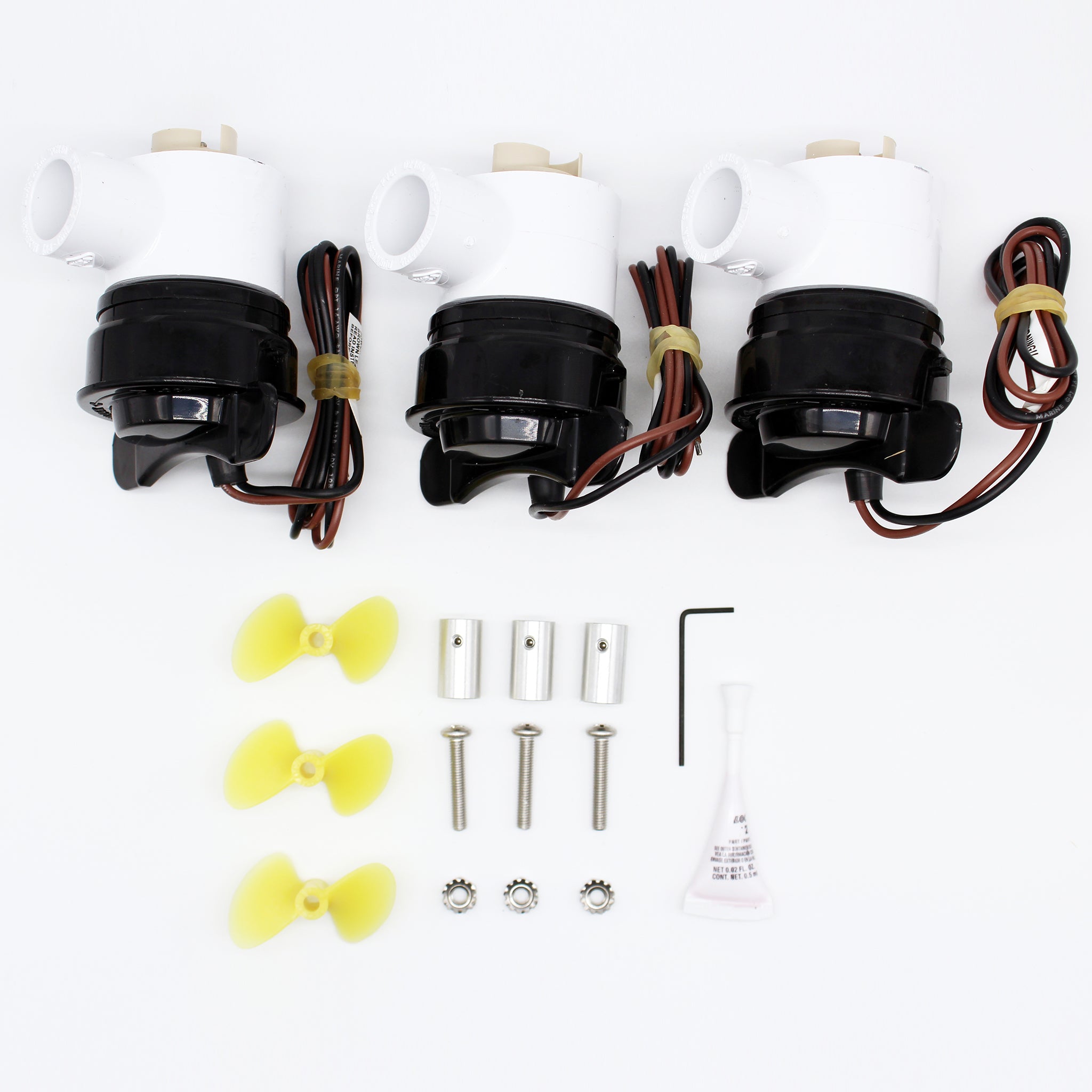

Three Motor and Propeller Kit

Propeller – 3 ea
Propeller Screw – 3 ea
Locknut for propeller screw – 3 ea
Propeller adapter – 3 ea
Set screw for propeller adapter – 3 ea
Thread locker – 1 ea
Hex wrench – 1 ea
Thruster Motor – 3 ea
PVC Motor Mount – 3 ea

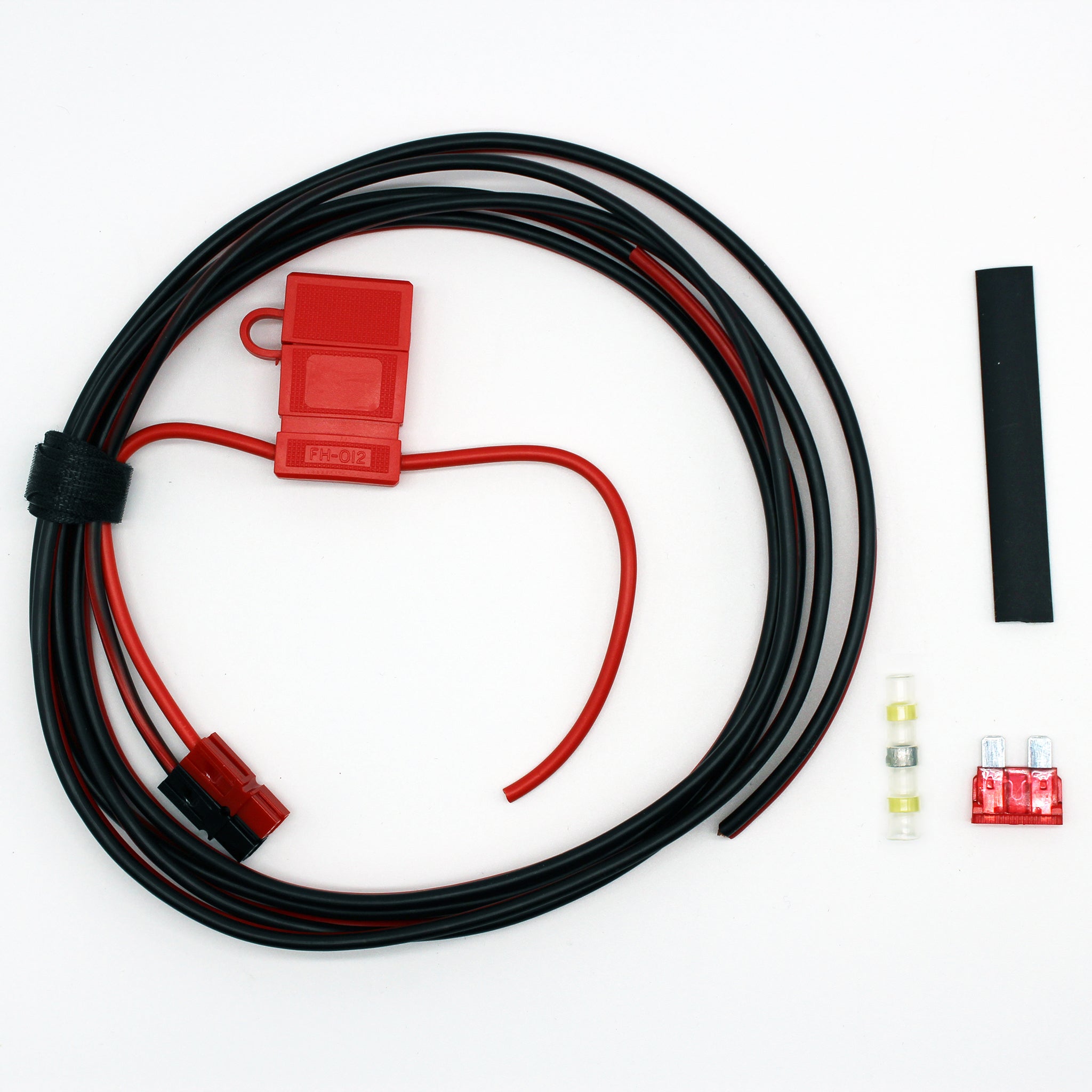

Power and Powerpole Assembly Kit

10 Amp Blade Fuse – 1 ea
Power Cord 16 Ga. (black/red zip cord) – 2.4m
Velcro Closures – 1 ea
7mm Black Heat Shrink – 7.6cm
30 Amp Bonded (Red/Black) Powerpole Connectors (red crimped to fuse holder, black crimped to zip cord) - 1 pair
14 Ga. Blade Fuse Holder – 1 ea
Yellow Solder & Seal Connector – 1 ea

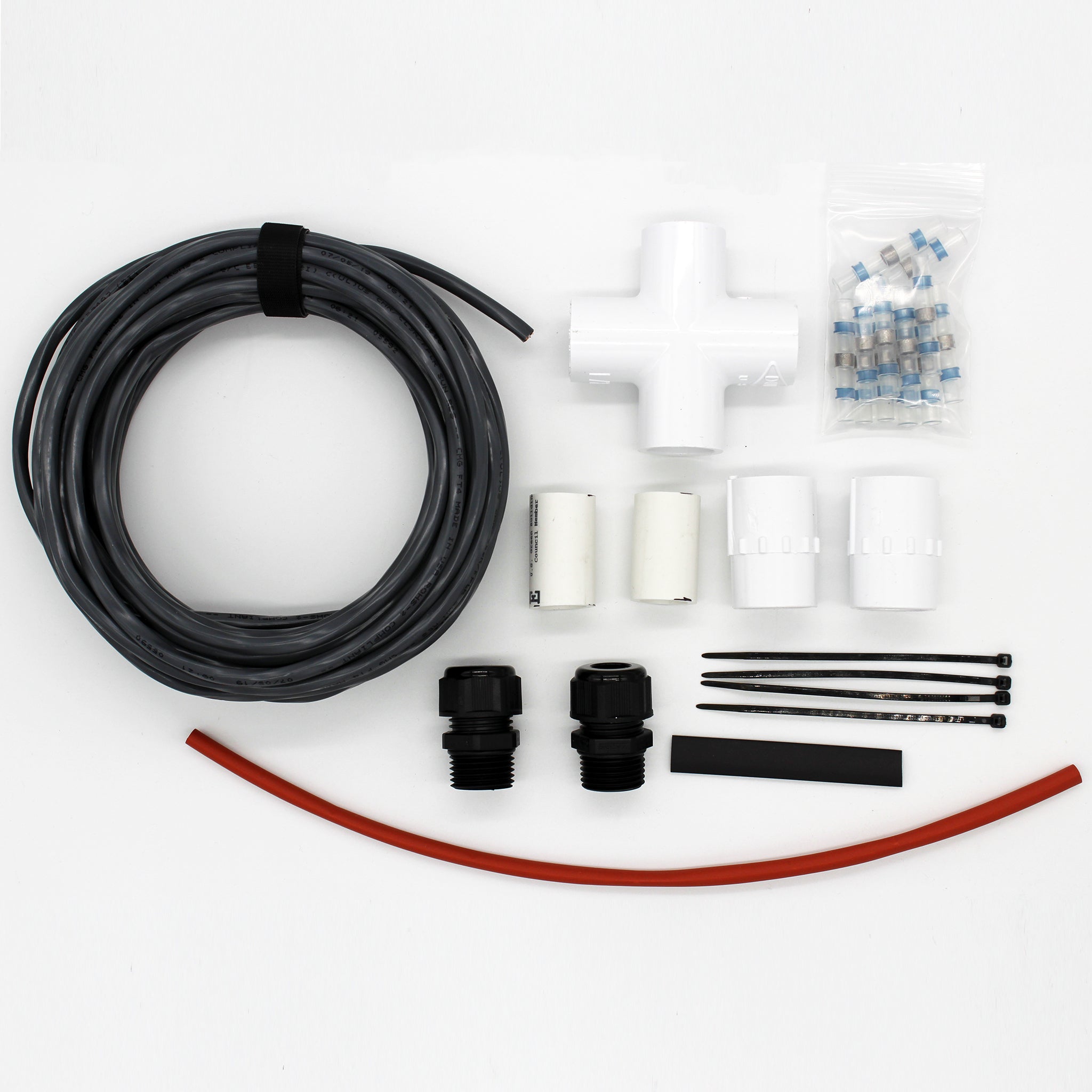

7.6M Tether Kit

18/6 AF/PF Tether Wire – 7.6m
Velcro Closures – 1 ea
3/16" Red Heat Shrink tubing – 30cm
7mm Black Heat Shrink – 7.6cm
Dome Strain Relief Connector 1/2" – 2 ea
PVC 1/2" Female Slip Adapter – 2 ea
1/2" PVC pipe (3.5 cm length) - 2 ea
1/2" PVC Cross – 1 ea
Zip Ties - 4 ea
Solder & Seal Connector - Blue - 6 ea

What's Not Included

A power supply is not included in this kit. Please check out this link for more power options.

Materials for a frame is not included in this kit. If you would like to purchase a frame, we do sell a PVC Frame Kit for the AngelFish and PufferFish Kit. You can check it out here!
