Prices include shipping within the United States*
Detailed assembly instructions are available for the AngelFish kit, including video lessons on assembling an ROV, how a DPDT switch works, basic electricity and many more topics here. You will need to register to access our lesson plans, however, registration is free.
If you're not sure where to start, take a look at this handy side-by-side comparison of the SeaMATE ROV kits (link leads to MATE Educate)

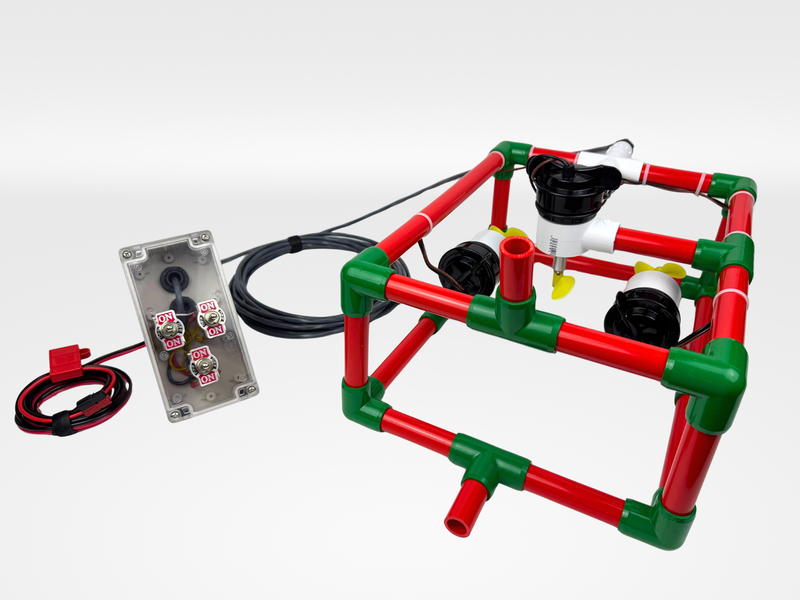

The AngelFish is a basic ROV kit that is designed to introduce students to ROV building. The Angelfish ROV kit consists of a control system, wires to receive and deliver power, and thrusters (motors, propeller adapters, and propellers). A frame is not included in the kit, but frame materials can be purchased from your local hardware store.
The assembled AngelFish kit is used for the ROV-in-a-Bag activity. ROV-in-a-Bag is recommended as an activity to introduce and get students excited about designing and building their own ROVs. ROV-in-a-Bag allows students to quickly build then operate – “fly” – an ROV in a swimming pool or test tank.
Assembled kits (A.K.A. ROV-in-a-Bag) require additional handling time of 2 weeks for assembly and 5-7 days for shipping from time of order.
The AngelFish ROV with thrusters and tether includes:

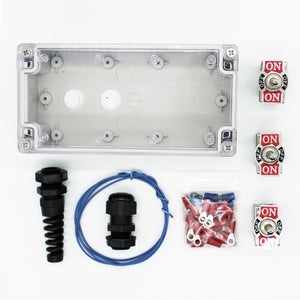

AngelFish Control Box Kit

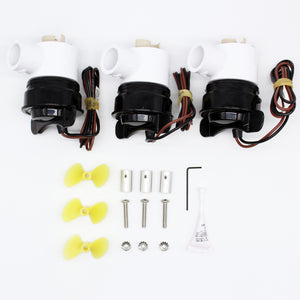

PVC Reducing Tee – 3 ea

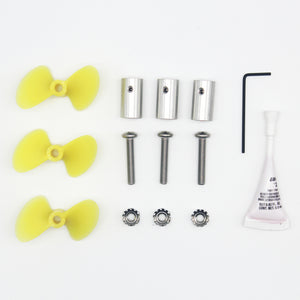

Propeller – 3 ea
Propeller Screw – 3 ea
Hex Nut for Propeller Screw – 3 ea
Propeller Adapter – 3 ea
Set Screw for Propeller Adapter – 3 ea
Hex Wrench – 1 ea

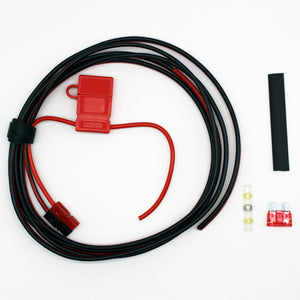

30 Amp Powerpole Assembly Kit – 1 assembly
Power Cord 16 Ga. (blk/red zip cord) – 2.4m
Velcro Closures – 1 ea
3/16" Red Heat Shrink tubing – 7.6cm
30 Amp Bonded (Red/Black) Powerpole Connectors (red crimped to fuse holder, black crimped to zip cord) – 1 pair
14 Ga. Blade Fuse Holder – 1 ea
Yellow Solder & Seal Connector – 1 ea
Velcro Closures – 1 ea
3/16" Red Heat Shrink tubing – 30cm
7mm Black Heat Shrink – 7.6cm

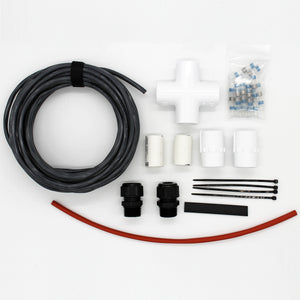

Dome Strain Relief Connector 1/2" – 2 ea
PVC 1/2" Female Slip Adaptor – 2 ea
1/2" PVC Cross – 1 ea
A POWER SUPPLY is not included with this kit
The AngelFish kit does not come with a power source. You will need to provide a power source to power your vehicle. We offer three different solutions, depending on your budget and how you intend to use the ROV.
For a solution that never needs recharging, we recommend an AC to DC, 30 amp power supply that plugs into an AC outlet, and provides a constant source of 12 volt DC power that the ROV needs. This power supply can operate two Angelfish vehicles at once without issue.
SAFETY NOTE: Since this converter is being used near water, you must plug this converter into a Ground Fault Circuit Interrupter (GFCI) protected outlet or have a GFCI plug on the end of the converter. DO NOT PLUG THIS INTO A STANDARD WALL SOCKET WITHOUT GFCI PROTECTION.
We also recommend keeping the AC to DC converter in a splash proof container or case. A small plastic tub turned upside down will work to keep splashes off the power supply.
Power pack with Powerpole adapter:
Powerpacks are battery packs that will provide the power your ROV will need. Powerpacks are often kept in vehicles to jumpstart a dead battery. They will run down over time but can be recharged by plugging them into a wall socket. The length of time a power pack can run an ROV depends on the ROV's power demands. Here is an example of a jumpstarter power pack with a 12V socket (external link)
The power packs will need an adapter for the Powerpole connector to plug into. This adapter plugs into the 12V lighter outlet found on the power packs, and the Powerpoles from your ROV plug into the adapter.
12 volt Deep-Cycle Marine/RV car battery with alligator adapter:
Large lead acid batteries are another way to power the ROV. We recommend the Deep-Cycle Marine / RV battery, as they are designed to be run down and recharged many times (a standard 12-volt car battery is not designed for this). The battery should be able to run an Angelfish ROV for 4 to 6 hours or you can run 3 ROVs at a time for an hour or more. The battery will need to be recharged after that. To recharge a car type battery, you will need to purchase a charger.
The battery will also need an adapter for the Powerpole connectors from your ROV to plug into. This adapter has Alligator clips that connect to the battery posts on one end and has Powerpole connectors at the other end.
*The continental United States is the area of the United States of America that is located in the continent of North America. The contiguous United States (also known as the United States Mainland) does not include Alaska, Hawaii, or any other territories under the control of the United States.
